DCIsolator Current Voltage Transmitter DIN Rail Mount 0-10V to 4-20mA GLG with Three Proof Paint Spraying, for High and Low Temperature

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

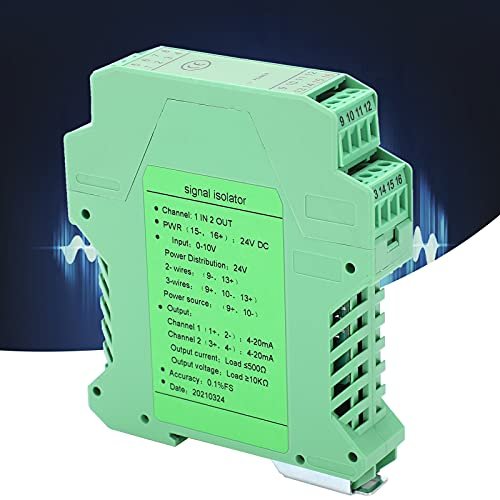

Spec:

Item Type: DCIsolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC24V

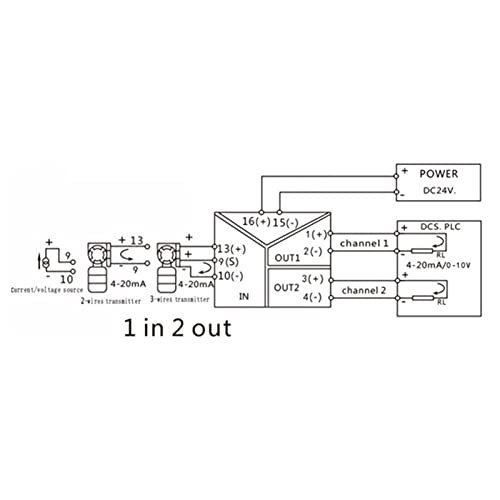

2-Wire System: (9-, 13+)
3-Wire System: (9+, 10-, 13+)
Power Supply: (9+,10-)
Output:
Channel 1 (1+, 2-): 4-20mA
Channel 2 (3+,4-): 4-20mA
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20~+55℃
Electromagnetic Compatibility:with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: Two-wire, three-wire transmitter, current source

Package List:
1 x DCIsolator

How To Use:
1. 35mm rail type installation, please pay attention to the stability and firmness of the card position during installation.
2. Please install it as vertically as possible to facilitate the heat dissipation inside the instrument.

Note:
1. The installation location must not have strong vibration, and the intensity of electromagnetic interference from theterminal, power terminal and space exceeding the third type of industrial field electromagnetic interference in the IEC61000‑4 series.
2. There must be no harmful substances that cause severe to metal and plastic parts in the use environment.

Package Dimensions ‏ : ‎ 5.12 x 4.72 x 1.18 inches; 5.15 ounces
Item model number ‏ : ‎ Hilitandbowk0gip3v
Date First Available ‏ : ‎ March 2, 2024
Manufacturer ‏ : ‎ Hilitand
ASIN ‏ : ‎ B0CWYD99NP

[Isolated Power Distribution] Provides power for transmitter, isolates & transmits current to control room
[High Versatility] Fits 35mm standard rail, strong anti-interference ability

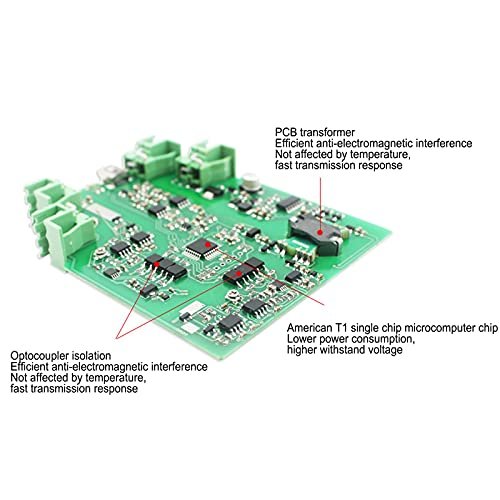

[Efficient Magnetic Isolation] High accuracy, linearity, low temp drift

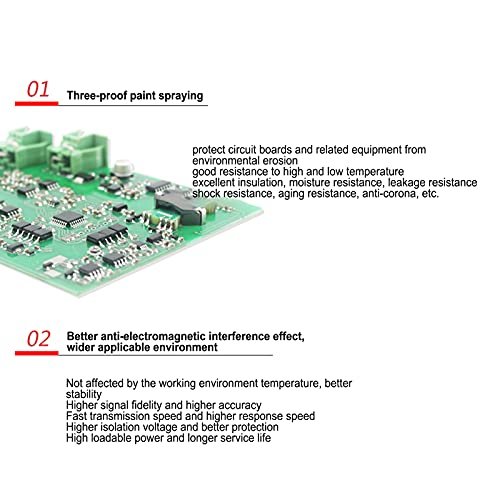

[Environmental Protection] Three-proof paint spraying protects from erosion, high & low temp resistance, excellent insulation
[Reliable Performance] Ensures strong anti-interference ability, high reliability
