DCIsolator Current Voltage Transmitter DIN Rail Mount 1 in 2 Out 0‑10V to 4‑20mA GLG, Strong Versatility, High Reliability for Two Wire and Three Wire Transmitters

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Spec:
Item Type: DCIsolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC24V
2-Wire System: (9-, 13+)
3-Wire System: (9+, 10-, 13+)
Power Supply: (9+,10-)
Output:
Channel 1 (1+, 2-): 4-20mA
Channel 2 (3+,4-): 4-20mA
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20~+55℃
Electromagnetic Compatibility:with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: Two-wire, three-wire transmitter, current source

How to Use:
1. 35mm rail type installation, please pay attention to the stability and firmness of the card position during installation.
2. Please install it as vertically as possible to facilitate the heat dissipation inside the instrument.

PackageList:
1 x DCIsolator

Notice:
1. The installation location must not have strong vibration, and the intensity of electromagnetic interference from theterminal, power terminal and space exceeding the third type of industrial field electromagnetic interference in the IEC61000‑4 series.
2. There must be no harmful substances that cause severe to metal and plastic parts in the use environment.

Package Dimensions ‏ : ‎ 5.12 x 4.72 x 1.18 inches; 5.15 ounces
Item model number ‏ : ‎ YWBL-WH0y7easdx45
Date First Available ‏ : ‎ February 10, 2024
Manufacturer ‏ : ‎ YWBL-WH
ASIN ‏ : ‎ B0CVF8GMQ5

[Isolated Power Distribution] Effectively isolates and transmits currentfrom transmitters to the control room and other input terminal interfaces. Compatible with two-wire and three-wire system transmitters.

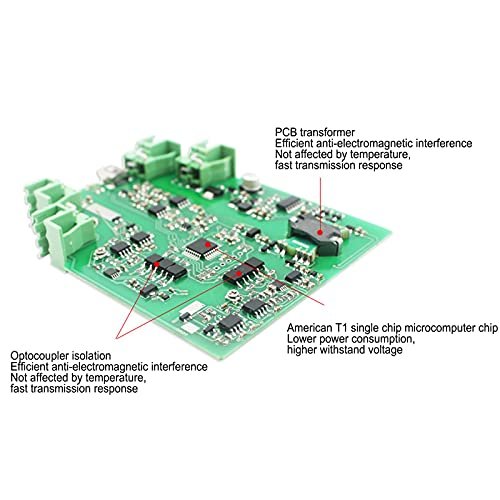

[Highly Accurate] Utilizes efficient magnetic isolation technology with high accuracy, high linearity, and low temperature drift.
[Strong Anti-interference] Provides input/output/power supply/shell isolation, ensuring high reliability and strong anti-interference ability.

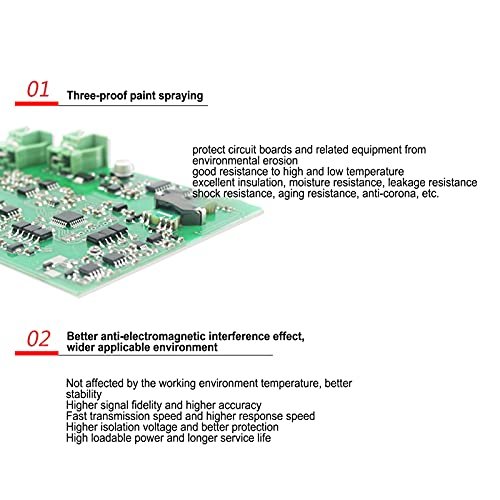

[Protects Your Equipment] Three-proof paint spraying protects circuit boards and equipment from environmental erosion. With good resistance to high and low temperature, excellent insulation, and moisture resistance.

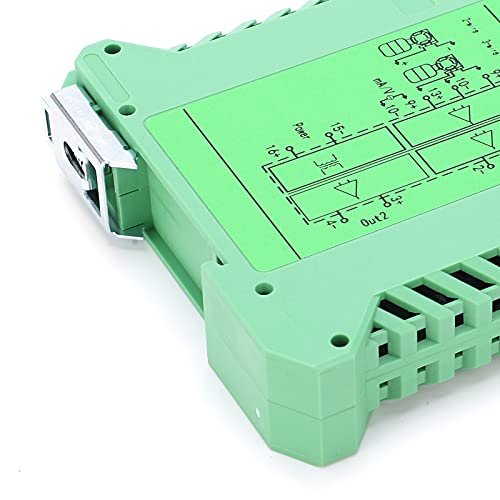

[Versatile Installation] Allows for easy 35mm standard rail installation, demonstrating strong versatility.
