Product Description
#41 High Performance Standard Roller Chains
Standard roller chains are the most widely used chain in industrial equipment across a variety of industries. Here at Jeremywell, we are proud to provide high performance roller chains that meet ANSI standards and have gone through stringent process measures to deliver quality, strength and longevity.
Chain Design Features

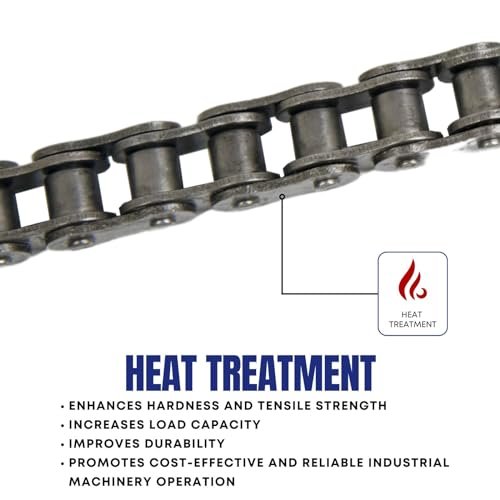

Heat Treatment
This ensures the optimum wear life and toughness for all component parts.
Shot Peened and Ball Calibrating
Link plates and rollers are shot peened for greater fatigue strength. The ball calibrating assures maximum resistance to fatigue failure for the plate hole.

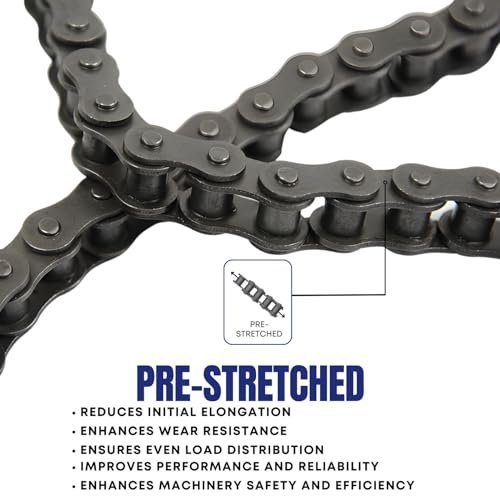

Pre-Stressing
Pre-stressing operations firmly seat the chain parts evenly distributing the working load. It accurately establishes chain length and prevents rapid elongation during the initial run in period.

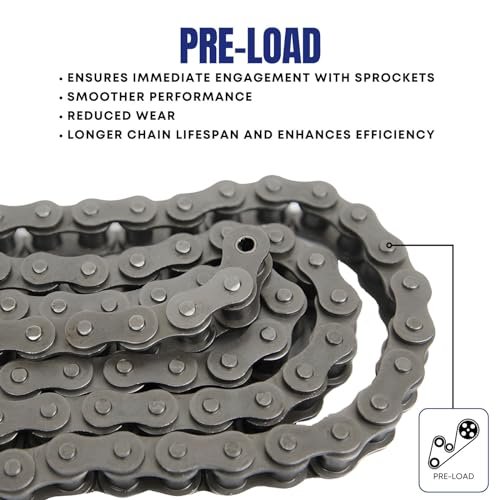

Pre-Loading
Roller chains are running after final assembly, the running in of chain increase it resistance to fatigue and prevent initial elongation of the chain.

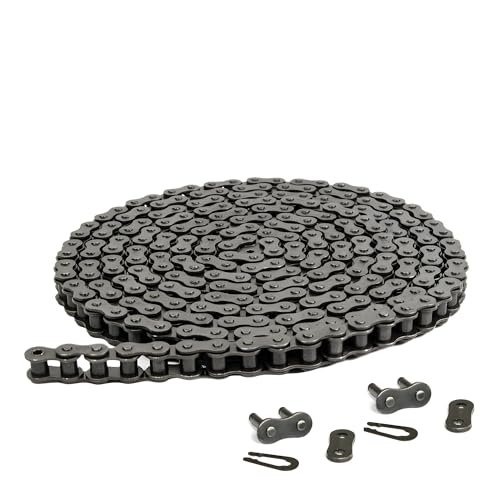

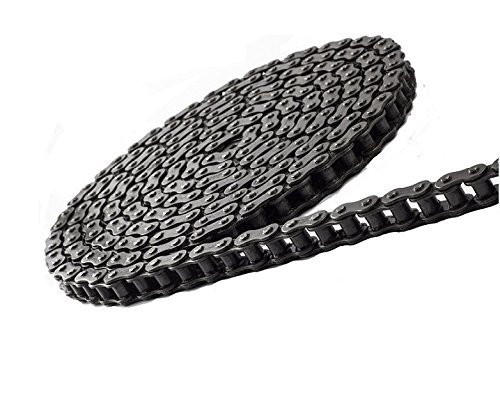

#41 Roller Chain
Pitch Size 0.500 Inch Roller Diameter 0.306 Inch Width Between Inner Plates 0.246 Inch Pin Diameter 0.141 Inch Pin Length L Max 0.541 Inch Pin Length Lc Max 0.591 Inch Inner Plate Depth 0.390 Inch Plate Thickness 0.051 Inch Average Tensile Strength 2400 lb Material Carbon Steel Weight Per Foot 0.275 lbs
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars
544
4.2 out of 5 stars
42
4.5 out of 5 stars
187
4.6 out of 5 stars
436
4.4 out of 5 stars
54
4.8 out of 5 stars
17
Price
$8.36$8.36
$10.81$10.81
$15.35$15.35
$17.59$17.59
$79.95$79.95
$152.99$152.99
Chain Length
3FT 5FT 10FT 10FT 50FT 100FT
Is Discontinued By Manufacturer : No
Product Dimensions : 7.5 x 7.5 x 0.88 inches; 2.98 Pounds
Item model number : 41-1-10ft
Date First Available : December 3, 2015
Manufacturer : Jeremywell
ASIN : B018WHT9U4
