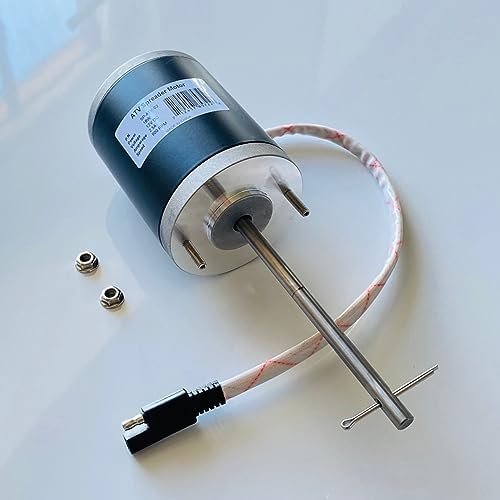

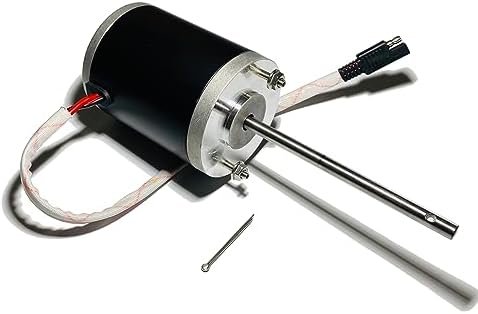

Replacement Motor for ATVS100 Broadcast Spreader 3008793 Buyers SaltDogg

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

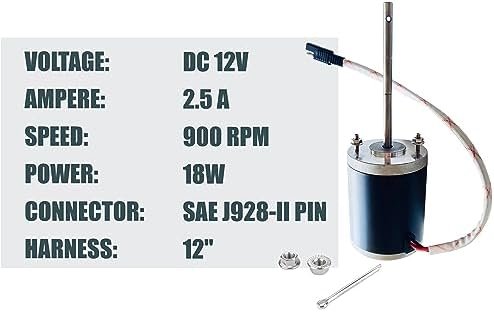

PART NUMBER SP-ATV-02 VOLTAGE DC 12V RATED AMPERE 2.5 A RATED SPEED 900 RPM CONNECTOR SAE J928-II PIN CABLE LENGTH 12″ PRODUCT DIMENSIONS 3″ x 3″ x 9″ PACKAGE DIMENSIONS 4.9″ x 5.2″ x 11″

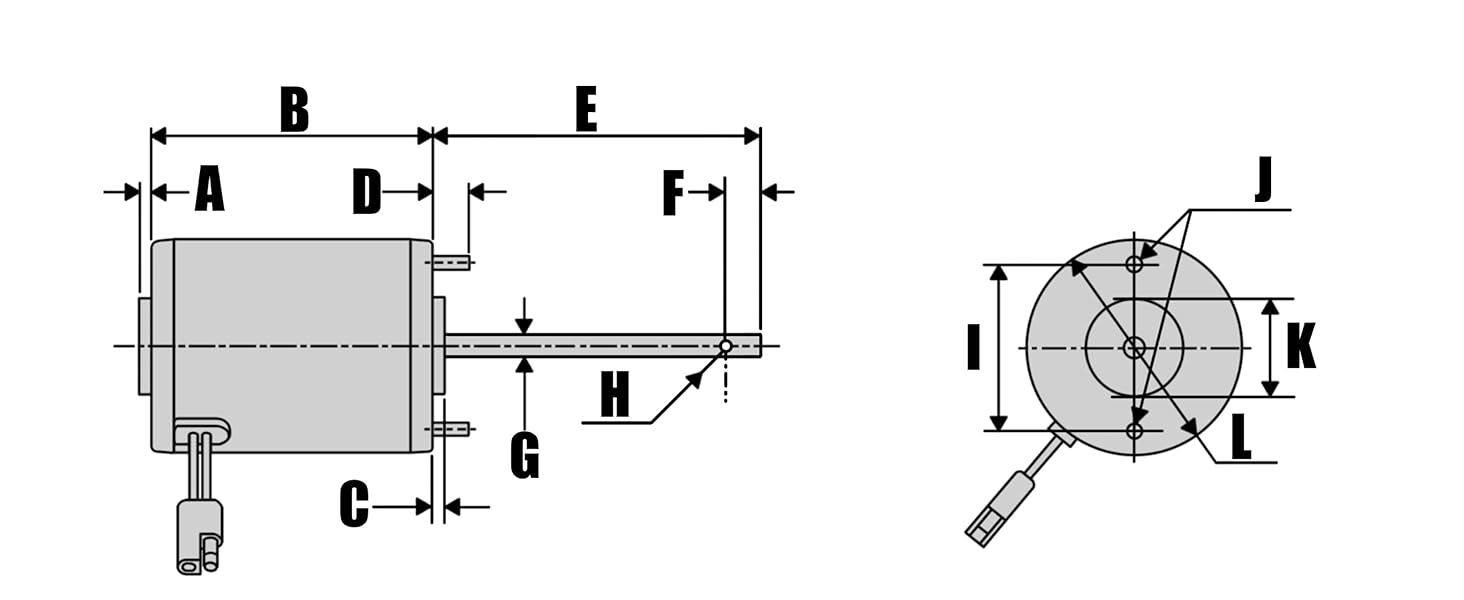

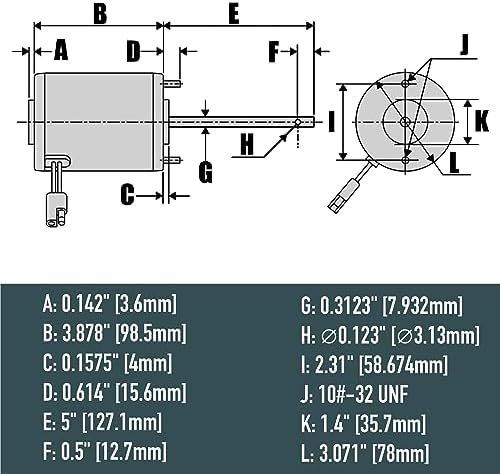

A 0.142″ [3.6mm] B 3.878″ [98.5mm] C 0.1575″ [4mm] D 0.614″ [15.6mm] E 5″ [127.1mm] F 0.5″ [12.7mm] G 0.3123″ [7.932mm] H ∅0.123″ [∅3.13mm] I 2.31″ [58.674mm] J 10#-32 UNF K 1.4″ [35.7mm] L 3.071″ [78mm]

MORE CHOICES

RATED POWER

18 W

RATED POWER

18 W

RATED POWER

75 W

RATED AMPERE

2.5 A

RATED AMPERE

2.5 A

RATED AMPERE

12 A

SPEED

900 RPM

SPEED

900 RPM

SPEED

1250 RPM

COMPATIBLE WITH

ATVS100

COMPATIBLE WITH

ATVS15A UTVS16

COMPATIBLE WITH

TGSUV1B

REPLACEMENT PN

3008793

REPLACEMENT PN

3000966

REPLACEMENT PN

3005693

18W | 900RPM | 2.5A | 12V DC
For ATV All-Purpose Broadcast Spreaders
IP67 Sealing Performance
Continuous Duty Cycle
At least 2000 hours Brush Lifetime
