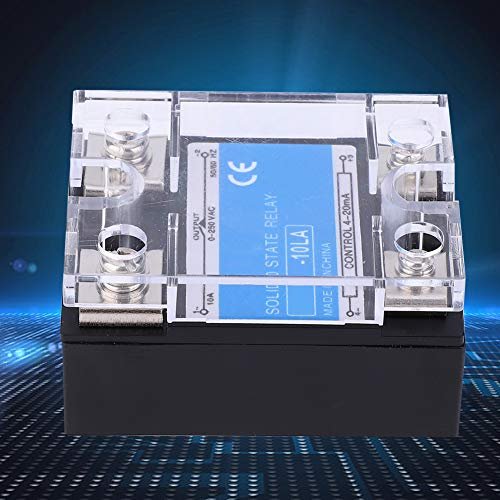

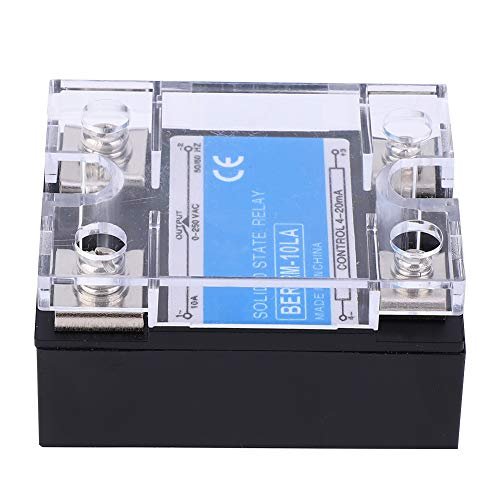

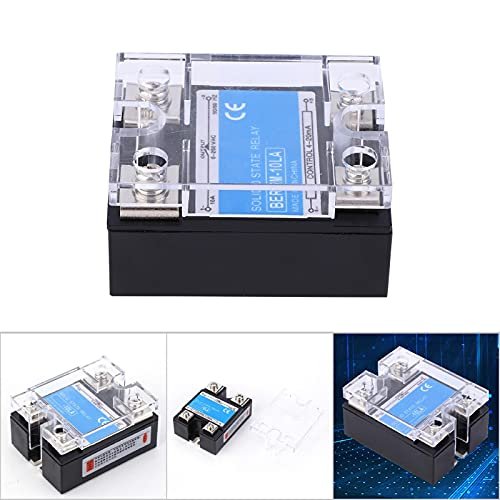

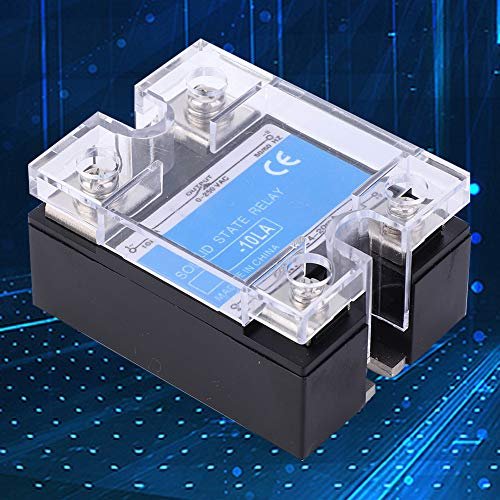

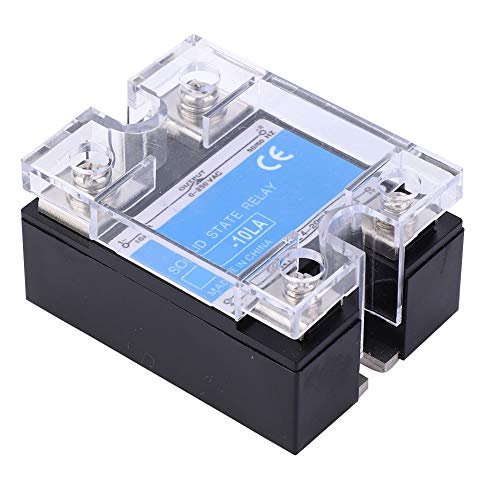

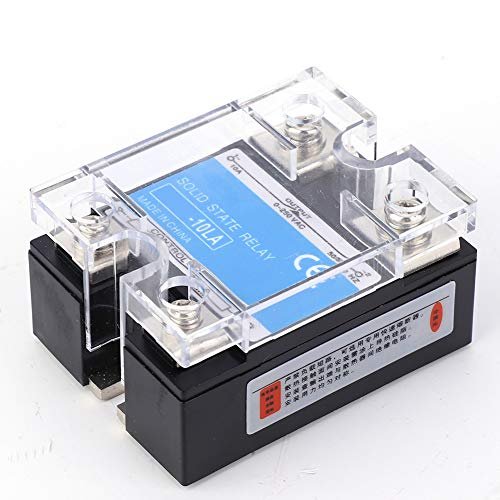

Solid State Relay 0~250VAC,4~20mA Current Type Single Phase Solid State Relay,Used in Ceramic Machinery, Petrochemical, Food Machinery, Packaging Machinery,Berm (BERM-10LA)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:Item Type:Solid State Relay
Brand:BERM
Loading Voltage:0~250VAC
Control Current:4~20mA
Control Mode:Current Control
Frequency Range:50/60Hz
Installation Method: Bolted
On-off Time: ≤10mS
Off-state Leakage Current: ≤10mA
On-state Voltage Drop: ≤1.8VAC
Working Environment Temperature: -40℃ ~ +80℃
Application: Widely used in ceramic machinery, petrochemical, food machinery, packaging machinery, textile machinery, plastic machinery, heating, cement, coal, medical, entertainment facilities and other automation control fields. It is especially used in environments where , humidity, dust, explosion protection, etc., and frequent switching. It is an alternative to AC contactors.

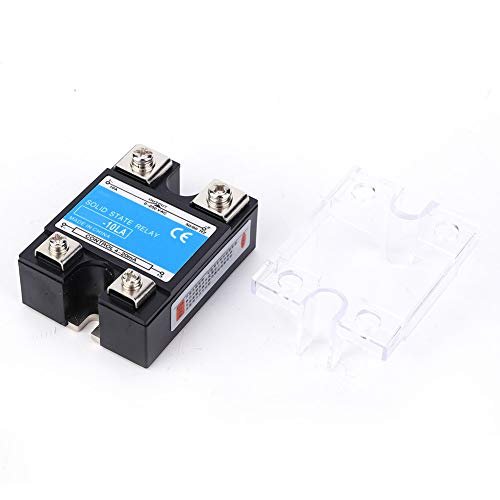

Package List:1 x Solid State Relay

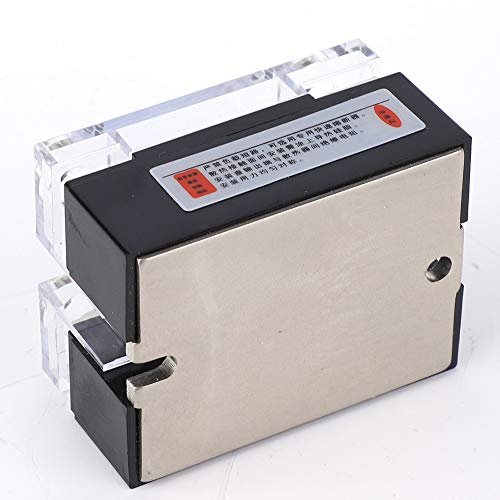

Note: Thermal conductive silicone should be added to the contact of the solid state relay to the heat sink to improve thermal conductivity.
Package Dimensions ‏ : ‎ 2.36 x 1.97 x 1.18 inches
Item model number ‏ : ‎ Jectse346ed2t0w8-11
Date First Available ‏ : ‎ May 22, 2023
Manufacturer ‏ : ‎ Jectse
ASIN ‏ : ‎ B0C5Z584YG

Simple and convenient control mode, only need external potentiometer, can realize AC power adjustment.
The external potentiometer has AC power, please pay attention to insulation protection.
Built-in RC absorption to protect the impact of the product on the instantaneous current.
No mechanical action parts, long service life, high reliability; fast switching speed and low RF interference.
The product is small in size and internally filled with resin, which is shockproof, moisture proof and resistant.
