Taidacent Corrosion and Acid Resistance I2c Digital Temperature Temp and Humidity Meter Soil Moisture Sensor SHT20 (SHT20)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Product Description

Description

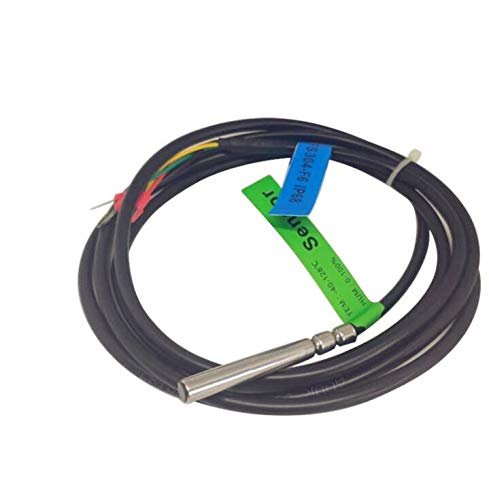

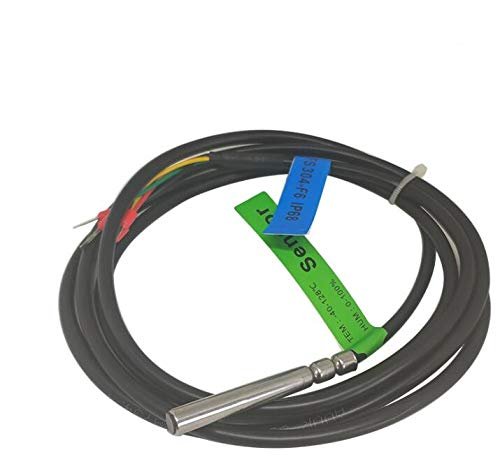

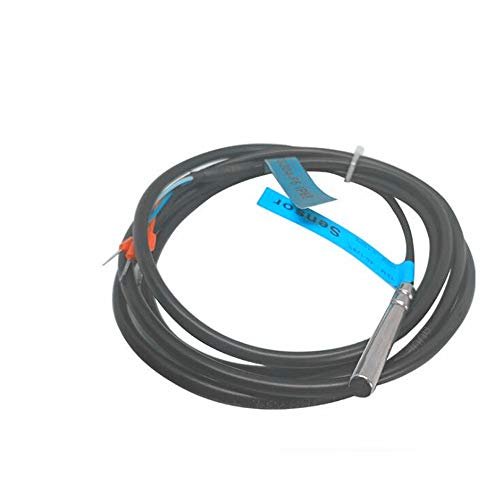

The temperature and humidity sensor probe is a cable type sensor in the digital temperature and humidity sensor series. The sensor outputs a calibrated digital signal in a standard I2C format.

Parameter

SHT2X Temp operating range -40 to +125°C (-40 to +257°F) SHT2X RH operating range 0 – 100% RH SHT3X Temp operating range -40°C – 125°C (-40°F – 257°F) SHT3X RH operating range 0 – 100% RH SHT20 Typ. Temp RH Accuracy ±3%RH; ±0.3°C SHT21 Typ. Temp RH Accuracy ±2%RH; ±0.3°C SHT25 Typ. Temp RH Accuracy ±1.8RH; ±0.2°C SHT25 Typ. Temp RH Accuracy ±3%RH; ±0.3°C SHT31 Typ. Temp RH Accuracy ±2%RH; ±0.3°C

Application

Computer room monitoring

HVAC

Weather station

warehouse

Construction site

Wiring connection

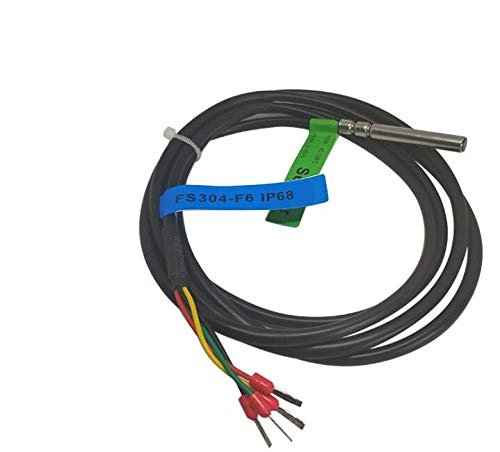

Red positive Black negative Green data Yellow clock

Precautions

The relative humidity of the air is a function of temperature. The temperature of the air has a great influence on the relative humidity. Acids, alkalis, salts and other compounds have a great influence on the physical properties of water vapor. Pay attention to the following matters when using:

1. The temperature and humidity sensor should be installed in a place where the temperature is relatively stable and can best represent the measured ambient temperature and humidity.

2. Avoid installing in places where the temperature changes drastically.

3. Avoid installing in places where the air flows violently.

4. Avoid installing in dead corners where the air does not flow.

5. Avoid using in salt fog environment.

6. Avoid using in corrosive gas environment.

7. Avoid installing in dead corners where the air does not flow.

Package Dimensions ‏ : ‎ 6.5 x 5.5 x 0.5 inches; 0.81 ounces
Item model number ‏ : ‎ Tdsht20probe
Date First Available ‏ : ‎ May 14, 2019
Manufacturer ‏ : ‎ Taidacent
ASIN ‏ : ‎ B07RPVGDZC

fully calibrated
digital output, I2C interface
low power consumption
excellent long-term stability
using DFN package – suitable for reflow soldering
