Product Description
Tech Drive
Tech Drive is 20 Years focus on manufacturing bathroom ventilation and exhaust fan of North America’s and aim to satisfy our customers with bathroom fans with low cost, innovated ventilation technology and good quality.
Bathroom Ventilation and Exhaust Fan with Humidity sensor
110CFM 0.8 Sones with 6inch Duct
Air Pro Series Fans deliver everything you wished for in a bathroom fan – premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal instal lation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards around the United States.
Perfect for the center spacing of 12-inch ceiling joists and It can attaching the fan Housing mounts to the ceiling joists (spacing between16 in.- 24 in) using suspension brackets. Two operation options

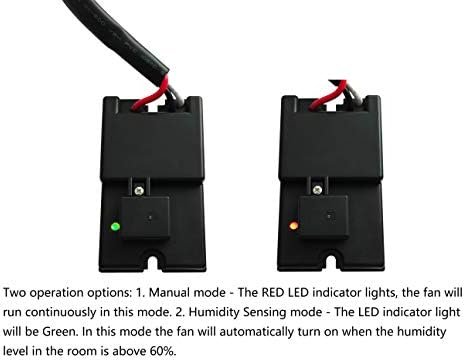

Two operation options:
1. Manual mode-The RED LED indicator lights, the fan will run continuously in this mode.
2. Humidity sensing mode- The LED indicator light will be green. In this mode the fan will automatically turn on when the humidity level in the room is above 60%.

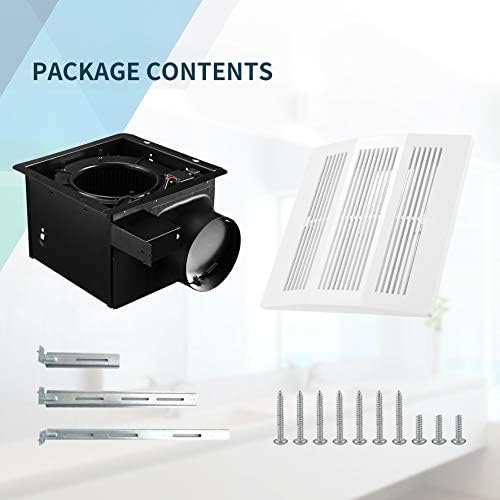

Package Content
Housing

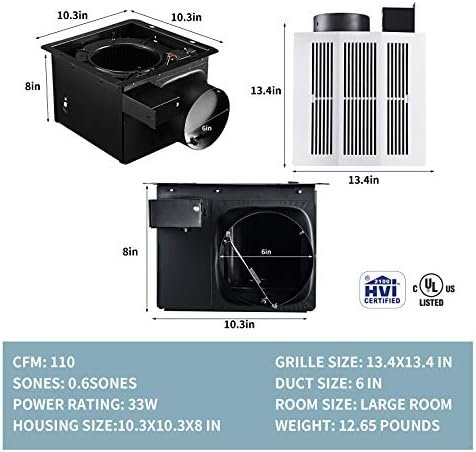

Heavy housing size: 10.32 in x 10.32 in x 8.0 in with 6 in duct, ceiling mounting Opening: 10.8in x 10.5in
Grille
Grille Demension:13.4″X13.4″
Suspension brackets
Short screws x 3
·Long Wood Screws x 8 ·Suspension Bracket x 4
Manual
Installation Manual x 1
Installation

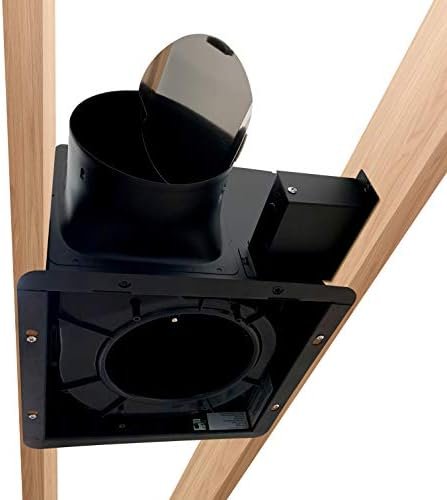

Joist Mounting
f spacing between joists is 12 in. apart, use 4 long wood screws to attach the fan housing directly to the joists from the bottom through the ceiling board.
Joist Mounting-I
If spacing between joists is 16 in. – 24 in. ,Secure the fan housing to the joist with suspension brackets using long wood screws.
Exisiting Construction
Existing Construction-Remove the duct connector from the fan housing.
Insert the fan housing into the opening cut in the drywall
CFM
50 70 70 80 90 90
Noise(Sones)
1.0 2.0 0.3 1.5 1.5 1.5
Motor
DC AC AC AC AC AC
Duct size
3inch 3inch 4inch 4inch 4inch 4inch
Housing size(inch)
7.5×7.25×4 7.5×7.25×6 9x9x7.6 7.5×7.25×6 9.3×9.3×7.3 9.3×9.3×7.3
Very quiet bathroom fan (0.8 sones) and Strong air movement (110CFM) for bathroom up to 110 Sq. Ft. Recommened for use in large room
Heavy housing size: 10.32 in x 10.32 in x 8.0 in with 6 in duct, ceiling mounting Opening: 10.8in x 10.5in
Two operation options: 1. Manual mode-The RED LED indicator lights, the fan will run continuously in this mode. 2. Humidity sensing mode- The LED indicator light will be green. In this mode the fan will automatically turn on when the humidity level in the room is above 60%.
Low profile white grill cover, Perfect for the center spacing of 12-inch ceiling joists and It can attaching the fan Housing mounts to the ceiling joists (spacing between16 in.- 24 in) using suspension brackets.
UL and HVI certified for performance assurance.Acceptable for use over a bathtub or shower when installed in a GFCI-protected branch circuit.
